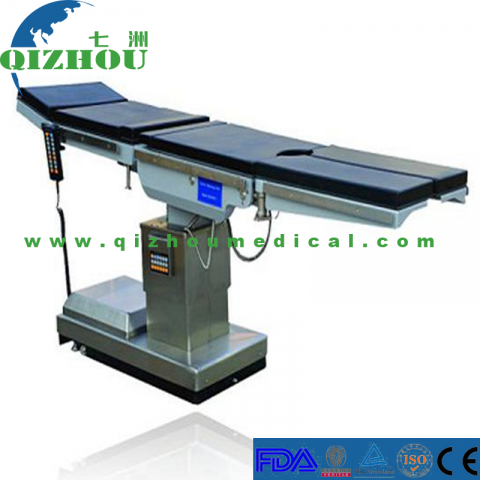

Surgical Bed Furniture Electric Operating Surgical Table

Model: QZ-EST-10

Main Technical Parameters:

·Length 2100mm Width 500mm

·Table height: 710 ~ 1160mm Range ≥ 450mm

·Back and forth moving of table: ≥500mm

·Forward inclination: ≥ 25° Backward inclination: ≥ 20° Roll: ≥ 18°

·Head plate upward folding: ≥ 45° Head plate downward folding: ≥ 90°

·Back plate upward folding: ≥ 85°  Back plate downward folding: ≥ 40°

·Leg plate downward folding: ≥ 90° Leg plate outreaching: ≥ 90°

·Rise of waist plate: ≥ 85mm

·V-shape posture: ≤ 100°, inverse V-shape posture: ≤ 220°

·Safe working load:135Kg Rated power:450VA

·Power: AC 220V±10%   50Hz

·Electric hydraulic pumps and solenoid valves are imported

·Power: AC 220V±10%, 50HZ

Performance Characteristics:

The electric operating table is developed by our company through introducing advanced technology abroad. It is a kind of high-grade multi-functional operating table suitable for surgery of orthopedics, gynecology and obstetrics, ophthalmology, otology, rhinology, laryngology, urology, etc., occupying a leading position in China.

1. Low height and large lift range of the table with 450mm make a sufficient space for cooperation with the C-arm usage.

2. 500mm vertical translation realizes full-body C-arm fluoroscopy and imaging of patients of no blind area without the need for reverse placement of the patients or pre-adjustment of the table.

3. With electric brake locking on the floor of four-point self-compensating, the full mechanical emergency brake release system is convenientfor transportation, shift, and cleaning.

4. Equipped with built-in emergency power supply which can be automatically charged andcan automatically jump to the working state when the network power supply is cut off.High performance rechargeable battery can ensure more than 50 operations in the case of the operating bed with no power.

5. Built-in electric lifting of waist bridge can easily adjust a variety of postures needed by the lumbar and spinal surgery.

6. The bed surface can form 100° V-shape posture and 220° reverse V-shape posture.

7. The bed surface adopts memory foam mattress, easy to clean and disinfect.

8. The operating bed has two sets of control system: wired hand controller and bedbody emergency control panel, which can be adjusted automatically and reset horizontally by one key, beneficial for emergency treatment.

9. The main materials are SUS304 stainless steel and high strength cast iron and aluminum alloy, with good rigidity.

10. It can be combined with supine traction and lateral traction, as well as lower limbs traction, to conduct frontal and lateral fluoroscopy of hip joint and upper limb lateral fluoroscopic support.
