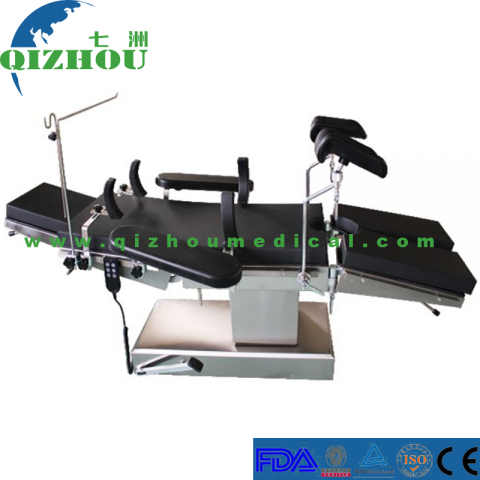

Multifunction Medical Surgical Operation Table Advanced Electric Operation Theater Room Surgery Table
Model: QZ-EST-1
Technology Specifications:
1.Table bed, width: 2020 (±20) ×500 (±20) mm;
2. Table height: minimum 650(±20)---950(±20)mm (electric);
3. Bed body left, right tilt (side) : ≤20° (electric);
4. Bed body forward ≤25°; back ≤20° (electric);
5. Backboard folding up: ≤75°; backboard folding down: ≤15°(air spring);
6. Leg board under folding: 90°, shaft can be expanded 180° detachable;
7. Rated load: 135kg;
8. Translation function: none;
Product Characteristics:
1. Key operation, electric push rod drive to achieve table lifting, forward and backward tilt, left and right tilt and other major body position adjustment
2. The table panel made of high quality acrylic board, the mattress made of slow rebound memory sponge, has the advantages of anti-corrosion, acid-alkali resistance, breathable, easy to clean, etc., and can be shaped naturally according to the patient's body temperature, effectively preventing the patient from producing bedsore memory sponge mattress
3. Leg board can be removed, manual rotation abduct, fold down
4. Thehead and leg plates are detachable for easy operation and provide more flexible operation space.
5. Using 24V dc voltage handheld manipulator, easy to operate, safe and reliable
6. The operating table with 304 stainless steel of medical grade is selected.
7. The surface is treated with special matte, which is more modern and clean.High strength stainless steel cover with strong compression resistance, corrosion resistance and easy cleaning
Basic Configuration List (single unit) :
Number
|
The Name Of The Accessories
|
Brand
|
Quantity
|
Unit
|
1
|
Operating table body
|
QZ |
1
|
set
|
2
|
mattress
|
QZ
|
1
|
set
|
3
|
Motor (import optional)
|
QZ
|
3
|
group
|
4
|
Anesthesia screen frame
|
QZ
|
1
|
piece
|
5
|
Hand holder frame
|
QZ |
2
|
piece
|
6
|
Leg holder frame
|
QZ
|
2
|
piece
|
7
|
shoulder
|
QZ |
2
|
piece
|
8
|
Waist Joe
|
QZ
|
2
|
piece
|
9
|
Built-in waist bridge
|
QZ
|
1
|
set
|
10
|
Manual device
|
QZ
|
1
|
piece
|
11
|
The power cord
|
domestic
|
1
|
piece
|
12
|
Product certificate/warranty card
|
QZ
|
1
|
set
|
13
|
Operating instruction
|
QZ |
1
|
set
|
